HCR Mid Travel Kit for Polaris Ranger 1500 XD

PART# RAN-06400

Looking to take your Polaris Ranger XD to the next level? Then look no further. The HCR Ranger XD Mid travel kit features an 8" wider stance to keep you stable and safe on any trail. Up to 18" of ground clearance with the use of 35" tires* to clear over large obstacles. This American made product is made to tackle any and every terrain and turn your Ranger XD into an even stronger extreme duty machine. Our new ranger arms have been built bigger and stronger than the previous Ranger model to uphold the Extreme Duty name with our Dual Sport boxed design.

For optimal performance and ride quality we highly suggest pairing this kit with the SDi Active E-Clik shock complete shock system.

Features:

• Clears 35" tires with up to 18" of ground clearance*
• Gain 2.5" of ground clearance over front stock arms.
• 1" Forward A-arm.
• Easy 100% bolt on, no cut, no drill installation
• 8" wider stance over stock track width to improve stability dramatically, improves safety, and gives the driver the confidence to push their XD Ranger to the next level. Overall, 72" hub-to-hub width

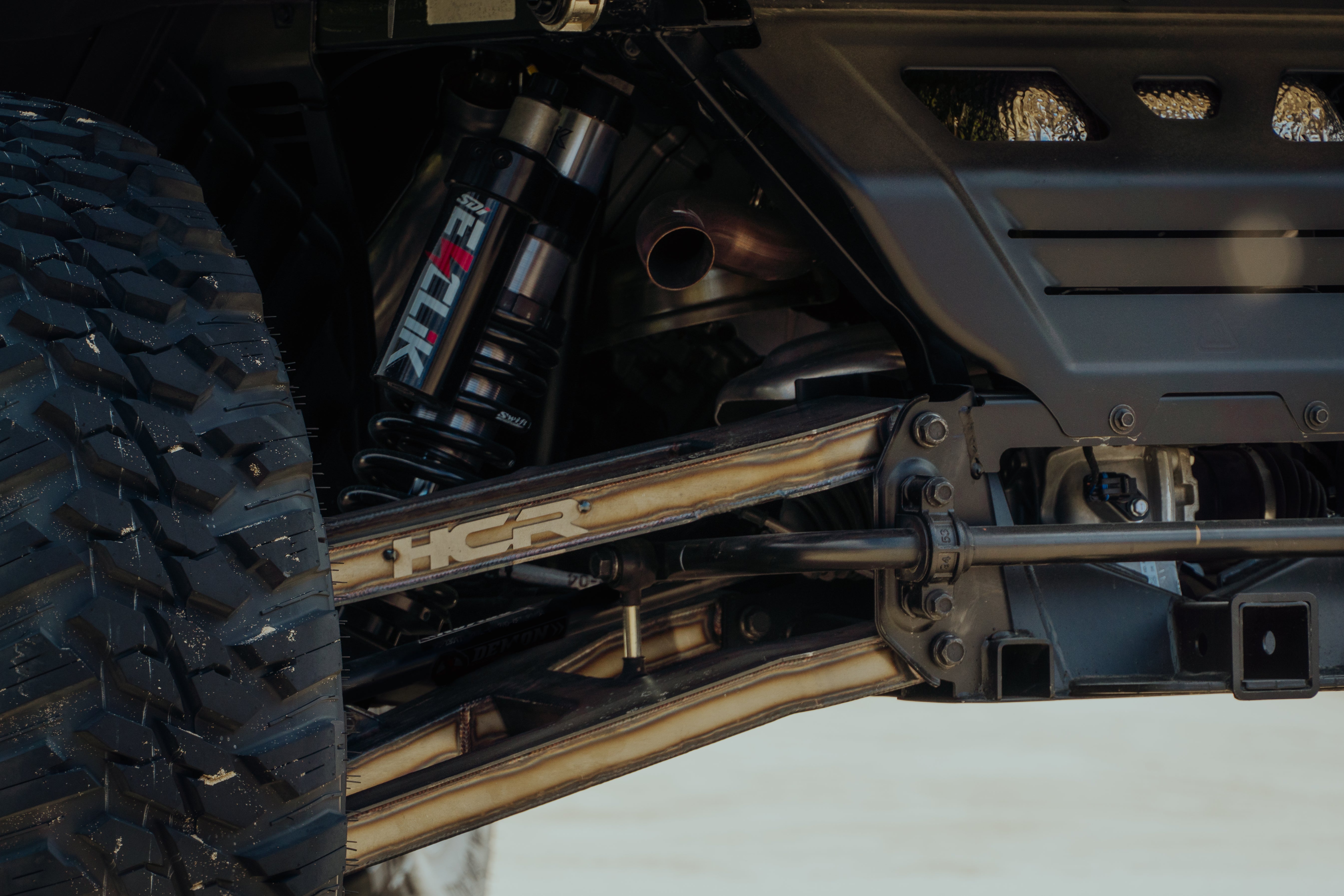

• Made out of HCR proprietary alloy, 30% stronger than chromoly steel.
• Proudly Made in the USA
• Hassle free instruction guide

Kit Includes:

• (4) Front A-arms
• (4) Rear A-Arms
• (4) Axle Bars
• (2) Tie Rod Extensions
• Hardware pack

Fitment:

• Polaris Ranger XD 1500 Premium : 2024+
• Polaris Ranger XD 1500 NorthStar Premium : 2024+
• Polaris Ranger XD 1500 NorthStar Ultimate : 2024+
• Polaris Ranger Crew XD 1500 Premium : 2024+
• Polaris Ranger Crew XD 1500 NorthStar Premium : 2024+
• Polaris Ranger Crew XD 1500 NorthStar Ultimate : 2024+

*Will clear a 35" tire with minimal rubbing on the dump bed.
