HCR Dual Sport Suspension Kit for Can-Am Maverick X3 64" (2017-2021)

Part # MAV-05300

Features

• Easy 100% bolt-on, no-cut, no-drill installation
• High-clearance A-arms and trailing arms
• Made from HCR proprietary alloy — 30% stronger than chromoly steel
• Proudly made in the USA

To take the already impressive X3 one step further, HCR has developed an American-made product designed to look, feel, and function better than the factory suspension. The HCR X3 Suspension Kit is designed as an OEM replacement kit for the 64" X DS models. The signature high-clearance A-arm and trailing arm design increases ground clearance by 1.5" under key suspension components, improving approach angles and reducing surface contact and friction.

Kit Includes

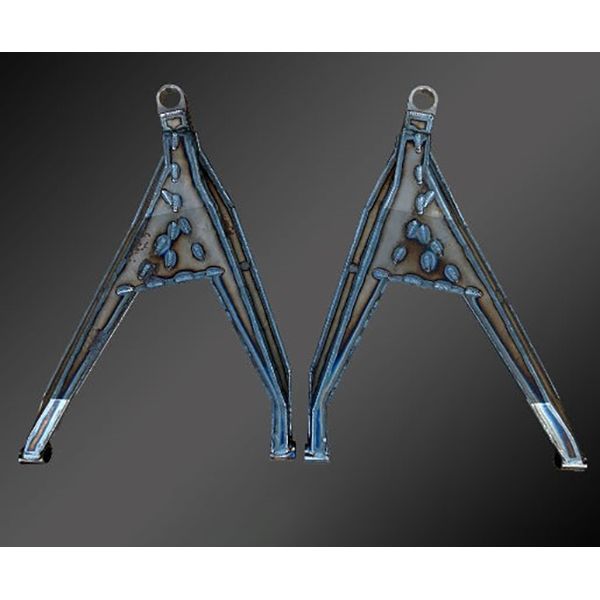

• (4) Front A-arms (2 upper, 2 lower)

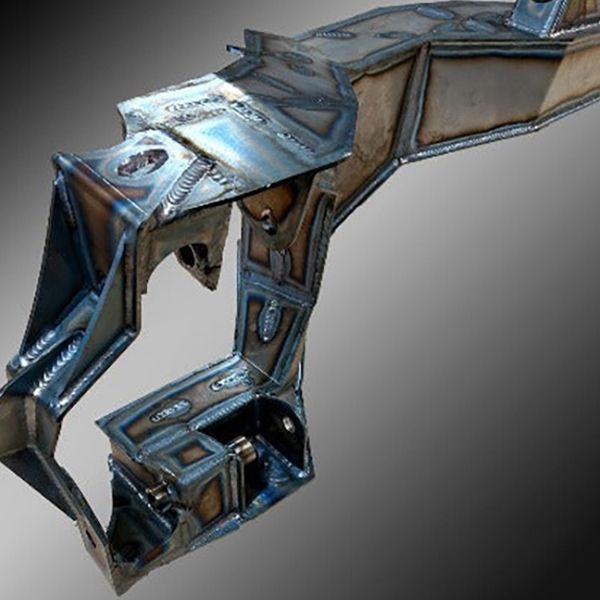

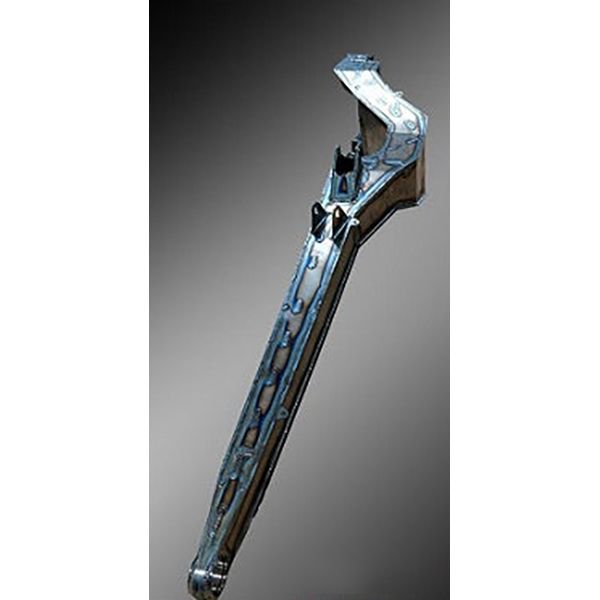

• (2) Rear trailing arms
• Delrin bushings for front A-arms
• Brake lines
• Mounting hardware
• Shock bolts

Fitment

• 64" Models
• Can-Am Maverick X3 900 : 2018
• Can-Am Maverick X3 Turbo DS (Standard) : 2017–2021
• Can-Am Maverick X3 Turbo R DS (XDS) : 2017–2021
• Can-Am Maverick X3 Turbo XRC : 2018–2021
• Can-Am Maverick X3 Turbo XMR : 2018–2021
• Can-Am Maverick X3 Turbo RR XDS : 2020–2021
• Can-Am Maverick X3 MAX Turbo DS (Standard) : 2017–2021
• Can-Am Maverick X3 MAX Turbo R DS (XDS) : 2017–2021
• Can-Am Maverick X3 MAX Turbo RR XDS : 2020–2021

Notes

• Not compatible with Smart-Shox
• Will not fit double shear hubs
• Does not include trailing arm radial bearings (replace with Can-Am OEM hardware)
• 14" wheels will not fit
• HCR kits are made to order — quality takes time
